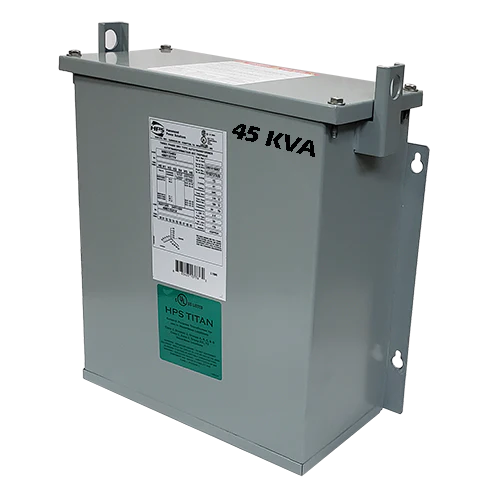

45 kVA 240D/208D Volt Primary to 208D/240D Volt Secondary 3 Phase Transformer CONVERTIDOR DE 1 A 3 FASES (TRIFASICO)

PORFAVOR CONSULTARNOS AL CORREO: VENTAS@MARKETIFY.MX ANTES DE SU COMPRA, YA QUE ES UN PRODUCTO DE USO PESADO SE REQUIERE COTIZAR EL FLETE PREVIAMENTE AL PEDIDO.

Transformer Specifications
3 Phase Auto Transformer | Dry Type | ANN-Self Cooled

Coils: Copper
KVA: 45
Primary: 240 Volts*
Secondary: 208 Volts*
Frequency: 60Hz
Insulation Class: 180 degrees C
Temperature Rise: 115 degrees C
Weight: 98 lbs
*Ability to wire 240D to 208D OR 208D to 240D / May be used in either step-up or step down configuration.

Standards
CSA Certified File No: LR34493
UL LIsted File No. E108255

Standard Features:
-Anti-vibration pads installed between the enclosure base and the core & coil assembly
-Lug for Earth grounding provided

CSA Enclosure
-Type 1 (Nema 1)
-Ventilated
-ASA 61 Grey
-Floor Mounting
