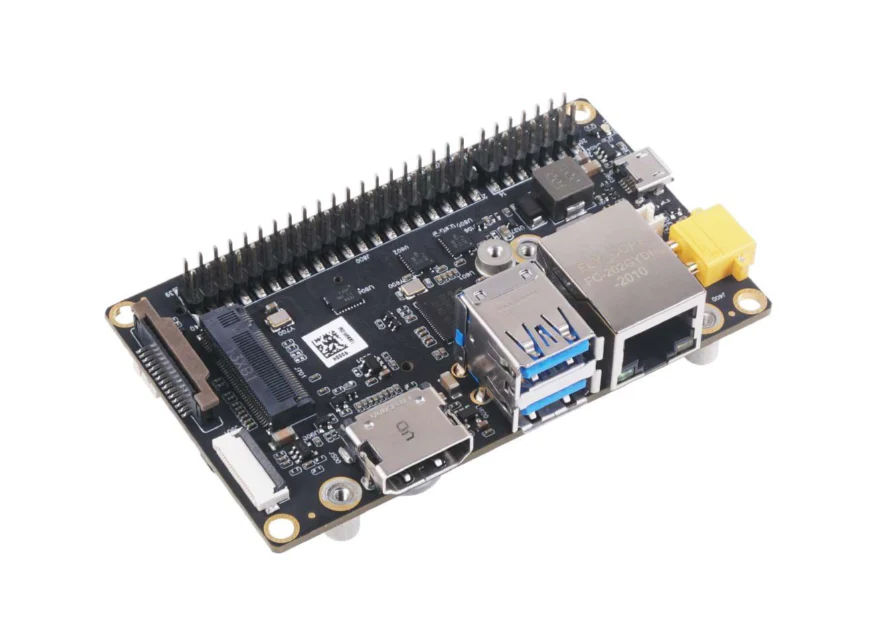

Tarjeta portadora A203 (versión 2) para Jetson Nano/Xavier NX/TX2 NX con tamaño compacto y puertos completos compatible con Wi-Fi, Bluetooth y SSD
Tarjeta portadora A203 (versión 2) para Jetson Nano/Xavier NX/TX2 NX con tamaño compacto y puertos completos compatible con Wi-Fi, Bluetooth y SSD
Specification
|
Connector |
Description |
|
HDMI Port |
HDMI Right Angle Vertical Connector |
|
USB 3.0 Type A |
2* USB 3.0 Link 1 Type-A Connector |
|
NVIDIA Gigabit Ethernet |
RJ45 Gigabit Ethernet Connector (10/100/1000) |
|
DC Power |
DC Input Power TE Connector |
|
USB 2.0 |
USB 2.0 Micro-AB Connector |
|
FAN Connector |
Picoblade Header |
|
SD Card |
1x MicroSD Card Slot |
|
M.2 Key E |
PCI-E 2230 Size |
|
CSI Camera |
1x CSI Camera |
|
USB 3.0 ZIF Connector |
USB 3.0 0.5mm pitch 20 pin ZIF |
|
RTC Connector |
3V, 2 pin |
|
M.2 Key M Disk |
Disk size 2242 |
|
NVIDIA Jetson Nano/NX/TX2 NX |
Nano/NX/TX2 NX 260 PIN Connector |
|
Multifunctional port |
2.0 PITCH 40 PIN (such as UART, GPIO, SPI, etc.) |
|
Multifunctional port |
2.0 PITCH 14 PIN (Reset, CAN, Recovery, etc.) |
